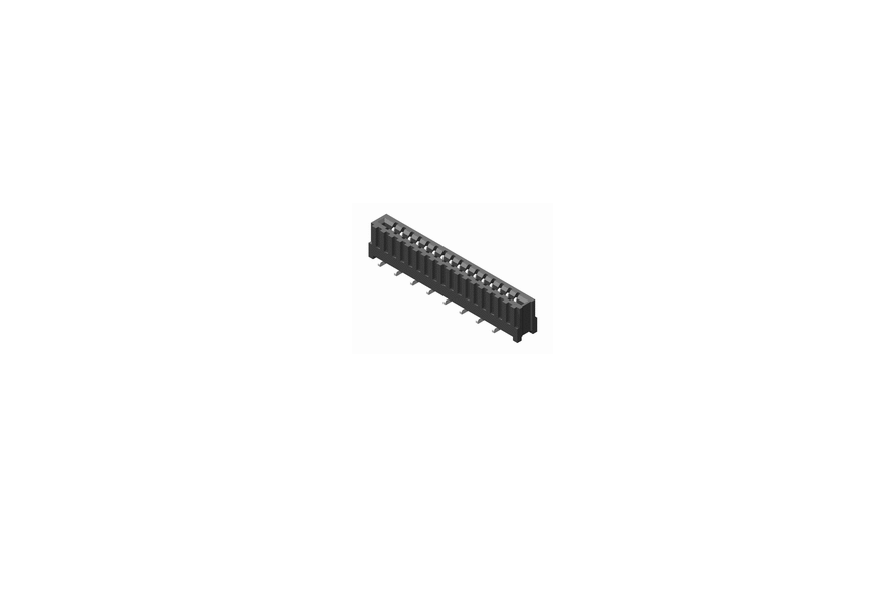

FFC/FPC Connector

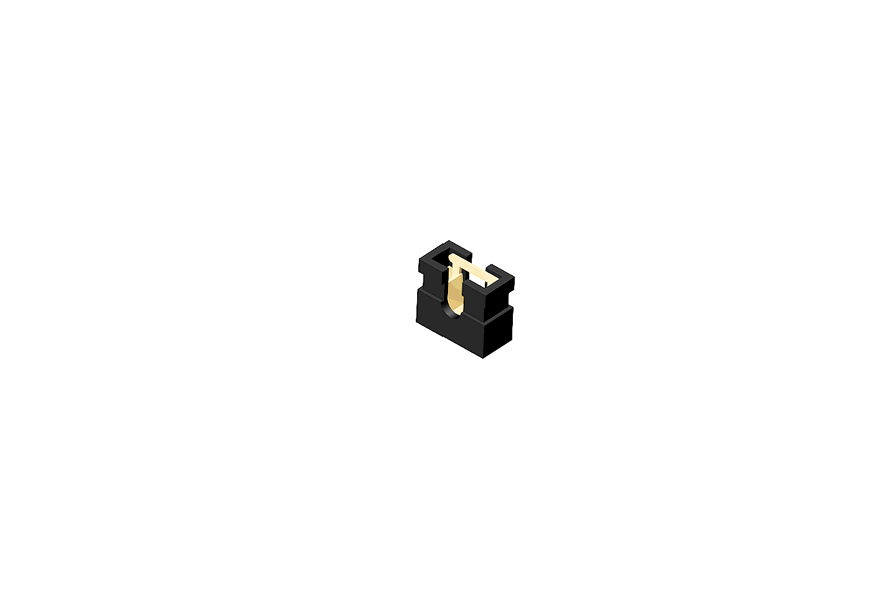

IC Socket

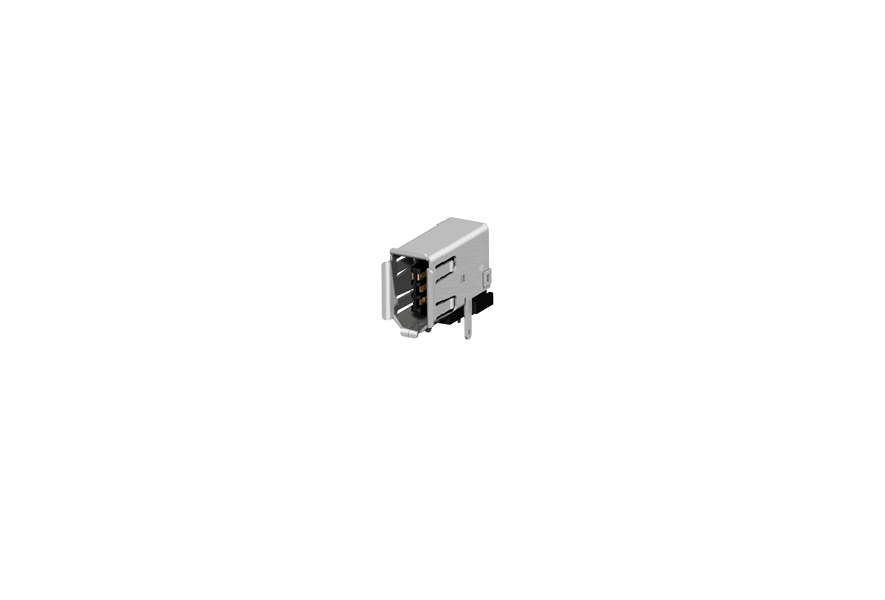

IEEE 1394 Connectors

LVDS Connector

Memory Card Connector

Mini-DIN Connector

Power Connector

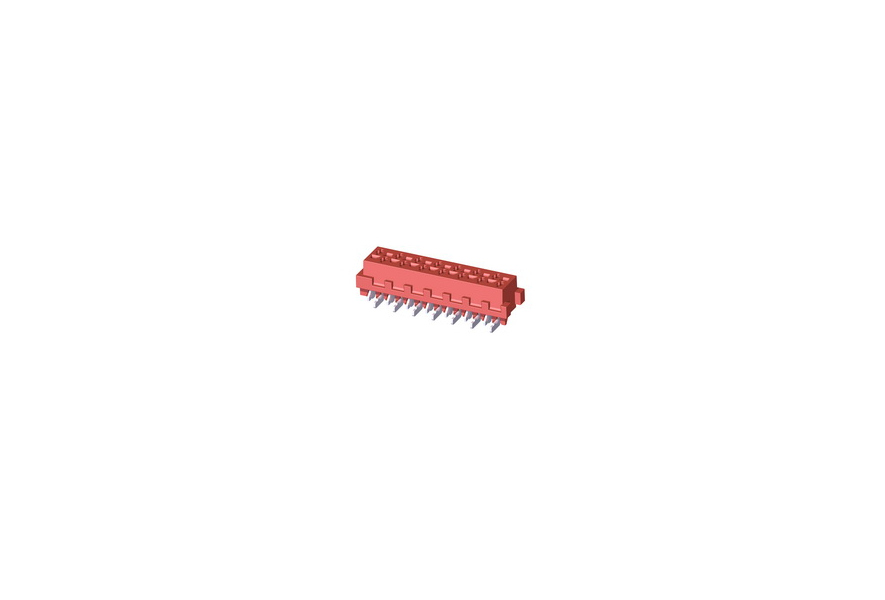

Ribbon Cable Connectors

Serial ATA Connector

Telephone / Modular Jack Connectors

USB Connectors

Wire to Board Crimp style Connectors

Wire to Board Insulation Displacement Connectors

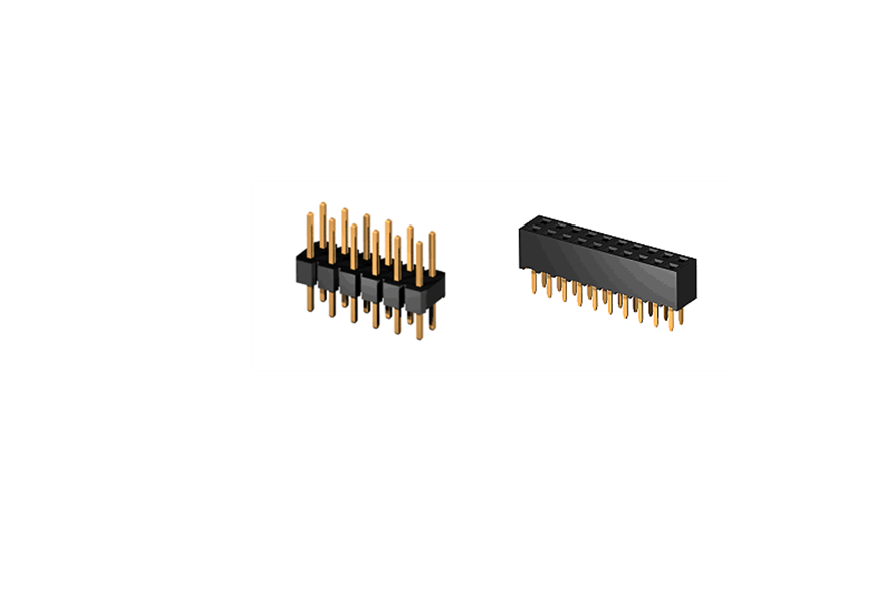

Description:

Male
Rated Current rating : 1A 250V AC/DC(r.m.s)
Dielectric Withstanding Voltage : 1000V AC for one minute
Contact Resistance : ＜20mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -40℃ ~ 105℃
RoHS Compliant

Female
Rated Current rating : 1A 250V AC/DC(r.m.s)
Dielectric Withstanding Voltage : 1000V AC for one minute
Contact Resistance : ＜20mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -40℃ ~ 105℃
RoHS Compliant

Feature:

间距： 2.00x2.00mm
系列： CB71（Male）、CB74（Female）
电镀规格：
1= Tin Over Nickel Plated
2= Gold Flash Plated over Nickel
电路：04 to 80 CIRCUITS

Description:

Rated current and voltage : 1A Max., 3000V AC/DC(r.m.s)
Dielectric Withstanding Voltage : 3000V AC for one minute
Contact Resistance : ＜20mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -25℃~85℃
RoHS Compliant
Please review the Product Specification for specific details.

Feature:

系列： CPLK
电镀规格：
1= Nickel Plated
电路：CIRCUITS

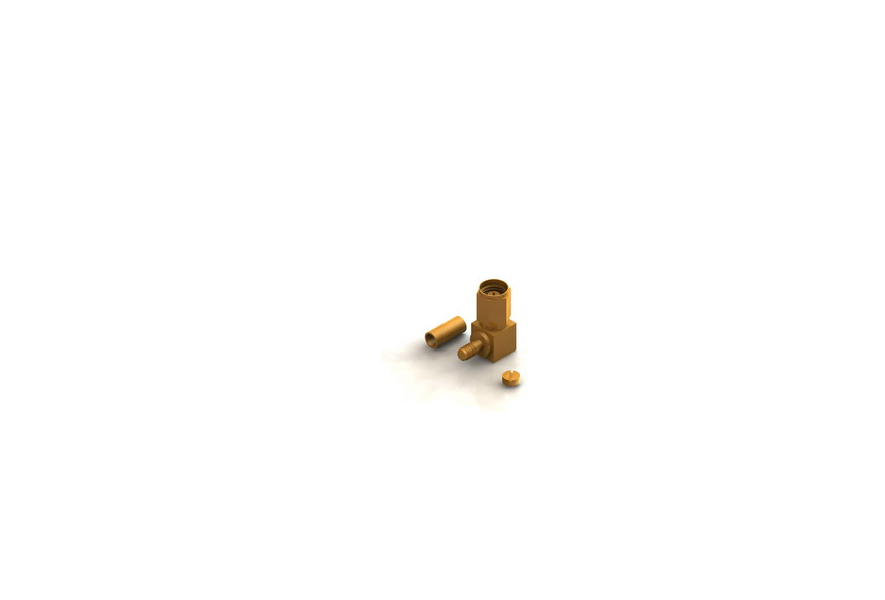

Description:

Impedance : 50Ω
Frequency Range: 0-12.4 GHz on Flexible cable. & 0-18.0 GHz on Semi-rigid cable.
Working Voltage: 250 VRMS Max.
Dielectric Withstanding Voltage: 750 VRMS Min.
VSWR: 1.5 Max.
Contact Resistance: Center Contact: 6mΩ Max. & Outer Contact: 2mΩ Max.
Insulator Resistance: 5000MΩ Min.
Engagement Force: 2 in-lbs. Max.
Disengagement Force: 2 in-lbs. Max.
Coupling Nut Retention: 60 lbs. Min.
Coupling Proof Retention: 15 in-lbs. Min.
Contact Retention: 6 lbs. Min.
Durability(Mating): 500 cycles Min.
Temperature Range: -65℃~165℃
RoHS Compliant

Feature:

系列： CR01
电镀规格：
2= Gold Flash Plated over 50μ” Nickel
电路：RG-316 CIRCUITS

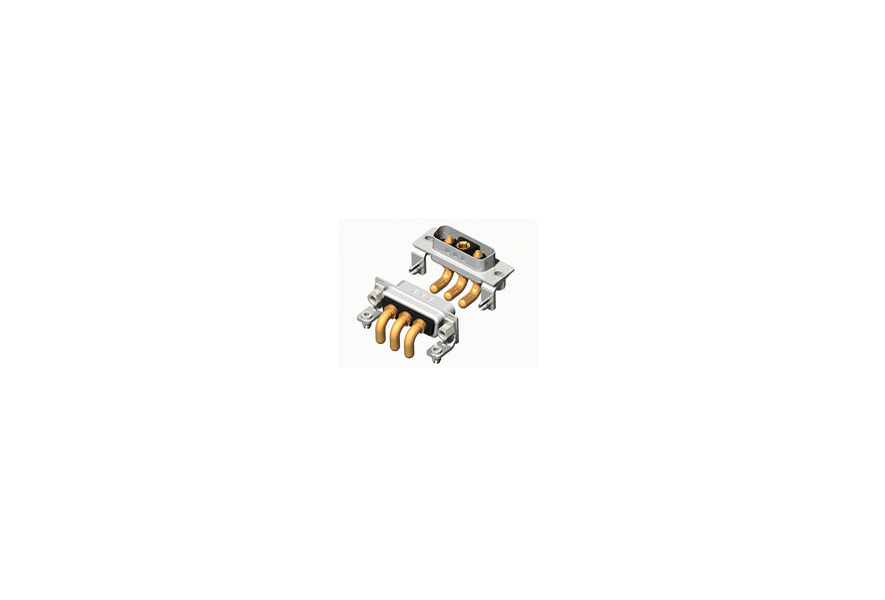

Description:

Dielectric Withstanding Voltage : 1000VAC for one minute
Contact Resistance : ＞5000 MΩ
High power contact current rating : 40 Amps
High power contact Resistance : ＜2.7mΩ
Connector mating and unmating force : 17.0 kgf max.
Durability : 100 Cycles
Operating Temperature : -55~125℃
RoHS Compliant
Lead Free Proecsses available

Feature:

系列： 3W3C
电镀规格：
2= Gold Flash Plated over Nickel
电路：CIRCUITS

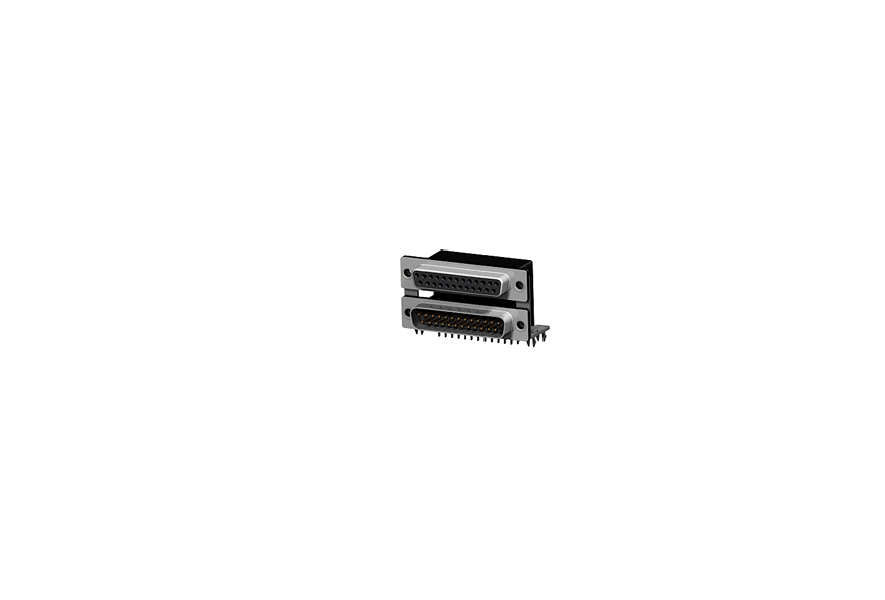

Description:

Rated current and voltage : 3A Max. Per, 250V AC(r.m.s)
Dielectric Withstanding Voltage : 1000V AC for one minute
Contact Resistance : ＜25MΩ
Insulation Resistance : ＞5000MΩ
Operating Temperature : -40℃~105℃
RoHS Compliant
Please review the Product Specification for specific details.

Feature:

系列： CD81
电镀规格：
A= Selective Gold Flash over Nickel
电路：
V1 = 9 to 9; V2 = 15 to 15; V3 = 25 to 25; V7 = 37 to 37 CIRCUITS

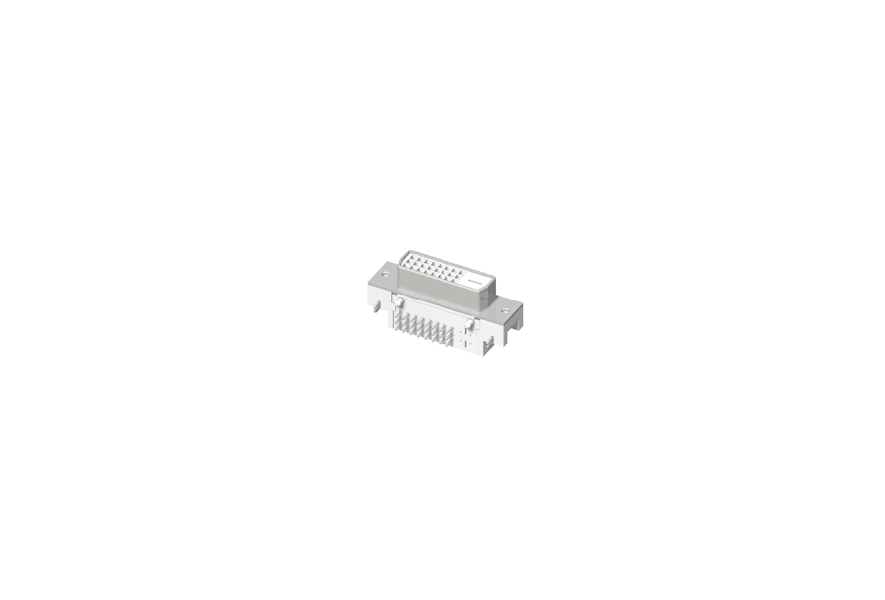

Description:

Rated current and voltage : 3.0A, 40V AC (r.m.s)
Dielectric strength: AC 500 V 1minute
Contact Resistance : ＜20mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -20℃~85℃
RoHS Compliant

Feature:

系列： CU07
电镀规格：
A = Selective Gold Flash over Nickel
电路：
Digital Type : 24 key CIRCUITS

Description:

Rated Current and Voltage : 1A , 100V AC(r.m.s)
Dielectric Withstanding Voltage : 500V AC for one minute
Contact Resistance : ＜20mΩ
Insulation Resistance : ＞500MΩ
Operating Temperature : -25℃~85℃
RoHS Compliant

Feature:

间距： 1.00mm
系列： CF08
电镀规格：
1= Tin Over Nickel Plated
电路：
04 to 32 CIRCUITS

Description:

Rated current and voltage: 1A 250V AC
Dielectric Withstanding Voltage : 600V AC for one minute
Contact Resistance : ＜20mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -40℃~ 105℃
RoHS Compliant

Feature:

间距： 2.00mm
系列： CS01
电镀规格：
2= Gold Flash Plated over Nickel
电路：
02 CIRCUITS

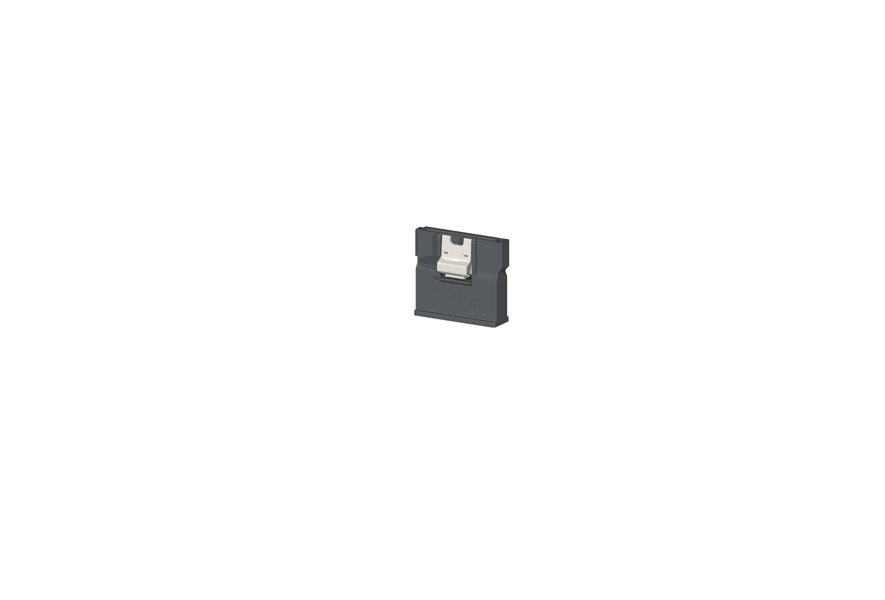

Description:

Rated current and voltage : 1.5A, 40V DC max.
Dielectric strength : EIA 364-20, 500V DC
Contact Resistance : ＜50mΩ
Insulation Resistance : ＞100MΩ
Operating Temperature : -40℃~85℃
RoHS Compliant

Feature:

系列： CU05
电镀规格：
C = Selective 30μ” Gold over 50μ” Nickel
电路：
6 CIRCUITS

Description:

Current rating : 0.3A DC/50V AC/DC
Dielectric Withstanding Voltage : 250V AC for one minute
Contact Resistance : ＜80mΩ(Initial),＜100mΩ(final)
Insulation Resistance : ＞100MΩ
Differential: 100±5Ω
Operating Temperature : -55℃~85℃;
Storage Temperature : -55℃~85℃
Coaxial cable: AWG #34~40; Wire cable: AWG #32~40
RoHS Compliant
Halogen Free

Feature:

间距： 0.50mm
系列： CVS3
电镀规格：
2= Gold Flash Plated over Nickel
电路：
30,40,50 CIRCUITS

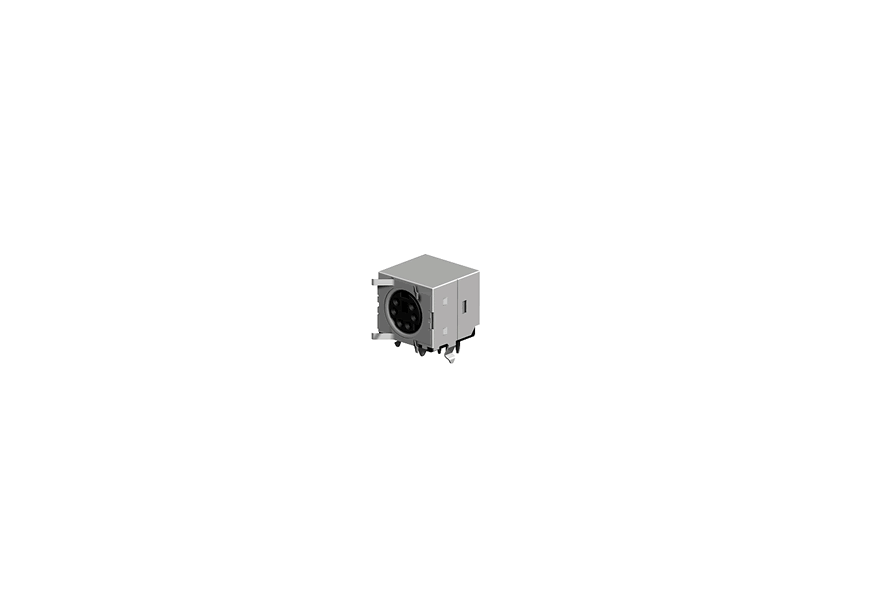

Description:

Current Rating : 0.5 Amp
Voltage : 5V AC/DC Max.
Dielectric Withstanding Voltage : 500V AC for one minute
Contact Resistance : ＜60mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -25℃~85℃
RoHS Compliant

Feature:

系列： CSD
电镀规格：
A = Selective Gold Flash Plated Over Nickel
电路：
9 CIRCUITS

Description:

Rated current and voltage : 1A 100V AC
Dielectric Withstanding Voltage : 500 V for one minute
Contact Resistance : ＜30 mΩ
Insulation Resistance : ＞500 MΩ
Operating Temperature : -40℃ ~ 105℃
RoHS Compliant

Feature:

系列： CE52
电镀规格：
A = Selective Gold Flash Over 50μ” Nickel
B = Selective 15μ” Gold Over 50μ” Nickel
C = Selective 30μ” Gold Over 50μ” Nickel
电路：
03 to 08 CIRCUITS

Description:

Rated current and voltage :1A,1400V AC(r.m.s)
Dielectric Withstanding Voltage : 3800V AC for one minute
Contact Resistance : ＜10mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -25℃~85℃
RoHS Compliant

Feature:

间距： 3.50mm
系列： CP05
电镀规格：
1= Tin Over Nickel Plated
电路：
02 CIRCUITS

Description:

Rated current and voltage : 1.5A 230V AC/DC
Dielectric Withstanding Voltage : 500V AC for one minute
Contact Resistance : Less than 10mΩ
Insulation Resistance : More than 1000MΩ
Ambient Temperature : -40℃ to 105℃
RoHs Compliant

Feature:

间距： 1.27x2.54mm
系列： CA32
电镀规格：
1= Tin Plated over Nickel
电路：
04 to 26 CIRCUITS

Description:

Rated Current and Voltage : 7A 250V AC (r.m.s)
Dielectric Withstanding Voltage : 500V AC for one minute
Contact Resistance : ＜30mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -40℃~105℃
RoHS Compliant

Feature:

系列： CI94
电路：
05 CIRCUITS

Description:

Current rating : 1.5A, 125V AC/DC(r.m.s)
Dielectric Withstanding Voltage : 1000 V AC
Contact Resistance : ＜25mΩ
Insulation Resistance : ＞500MΩ
Operating Temperature : -40℃~60℃
RoHS Compliant

Feature:

系列： CJP1
电镀规格： 2= Gold Flash Plated over Nickel
电路：
4P2C, 4P4C CIRCUITS

Description:

Rated current and voltage : 1A, 30V AC (r.m.s)
Dielectric Withstanding Voltage : EIA 364-20, 100V AC at sea level
Contact Resistance : ＜50mΩ
Insulation Resistance : ＞100MΩ
Operating Temperature : -40℃~60℃ storage; 0℃~40℃ operating
RoHS Compliant
Lead Free IR Processes

Feature:

系列： CU04
电镀规格：
A = Selective Gold Flash over 50μ” Nickel
C = Selective 30μ” Gold over 50μ” Nickel
电路：
05 CIRCUITS

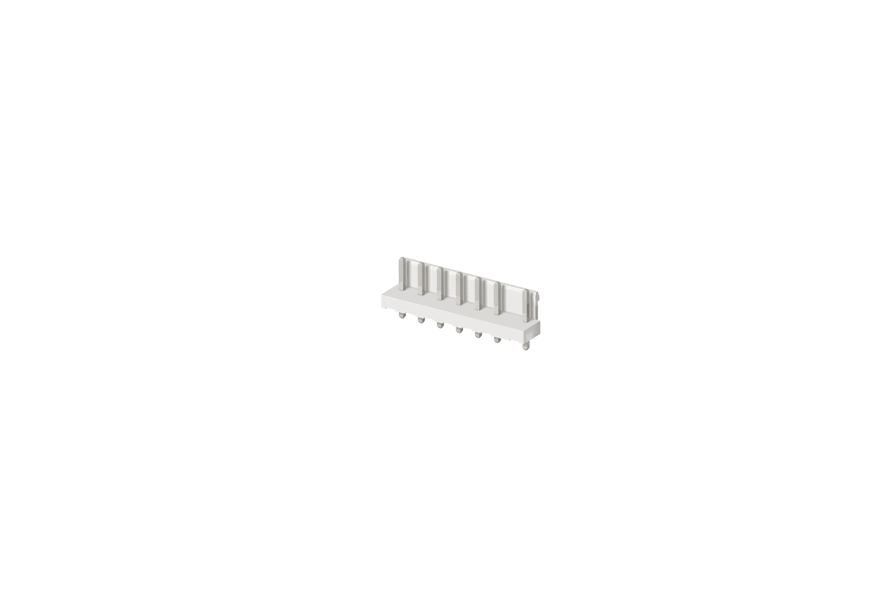

Description:

Rated Current and Voltage : 7A , 250V AC(r.m.s)
Dielectric Withstanding Voltage : 1500V AC for one minute
Contact Resistance : ＜20mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -55℃~85℃
RoHS Compliant

Feature:

间距： 7.5-5.0mm
系列： CI76
电镀规格：
1= Tin Over Nickel Plated
电路：
02 to 12 CIRCUITS

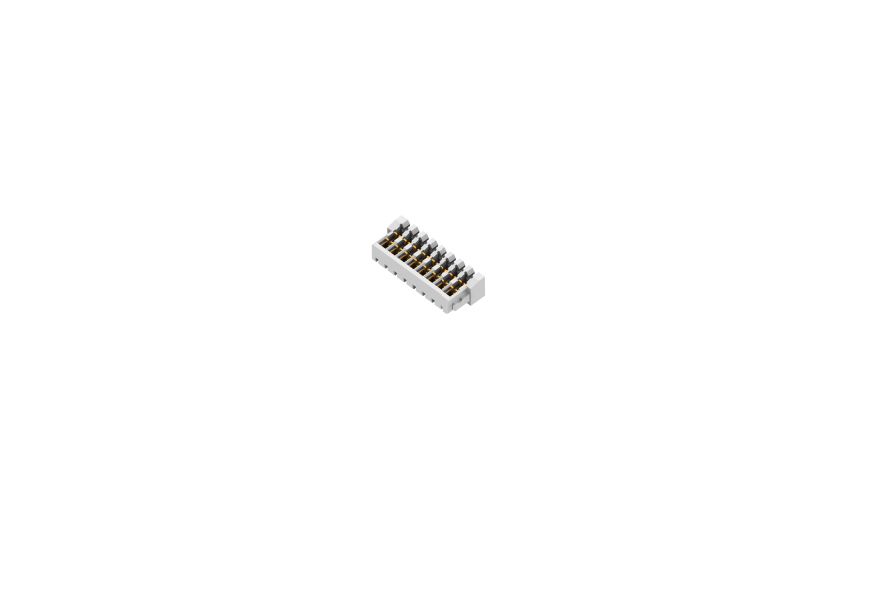

Description:

Rated Current and Voltage : 0.5A, 30V AC/DC (r.m.s)(AWG#32)
Dielectric Withstanding Voltage : 500 V AC for one minute
Contact Resistance : ＜20mΩ
Insulation Resistance : ＞100MΩ
Operating Temperature : -25℃~85℃
RoHS Compliant

Feature:

系列： CI18
电镀规格：
1=Tin plated over Nickel
2=Gold flash over Nickel
电路：
2 to 15 CIRCUITS

注：同一系列不同规格参数有所不同，以实际为准，请联系我们以获得解决方案支持。
