GG-A

GG-A

<

Audio Jack

Board to Board

Micro USB

Mini USB

RF

SIM Card

USB Type-C

FPC

SD Card

DisplayPort

Half Pitch

HDMI

Mini DisplayPort

USB 2.0

USB 3.0

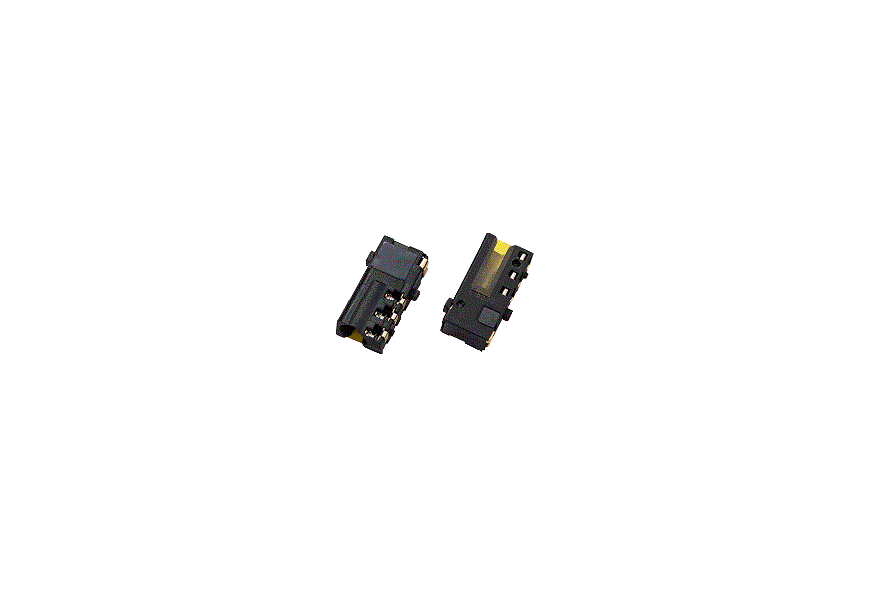

Description:


ØSize : Ø2.5mm & Ø3.5mm
Pin : 4~6
switch : 1~2
poles : 4

Feature:

  • Ø2.5mm/ Ø3.5mm
  • 4~6 pin/1~2 switch
  • 3~4 pole
  • SMT/DIP/Compression
  • Top-mount/Middle-mount
  • Ultra-low profile products are available
  • RoHS/Halogen Free

    • General Specification :
  • Durability: 5K~10K
  • Contact Resistance: 30mΩ ~100mΩ
  • Insulation Resistance: 100M
  • Dielectric Withstanding Voltage: 500V

Applications:

  • Mobile Phone/Smartphone
  • PDA
  • Smartphone
  • MP3 Player
  • DSC
  • Notebook

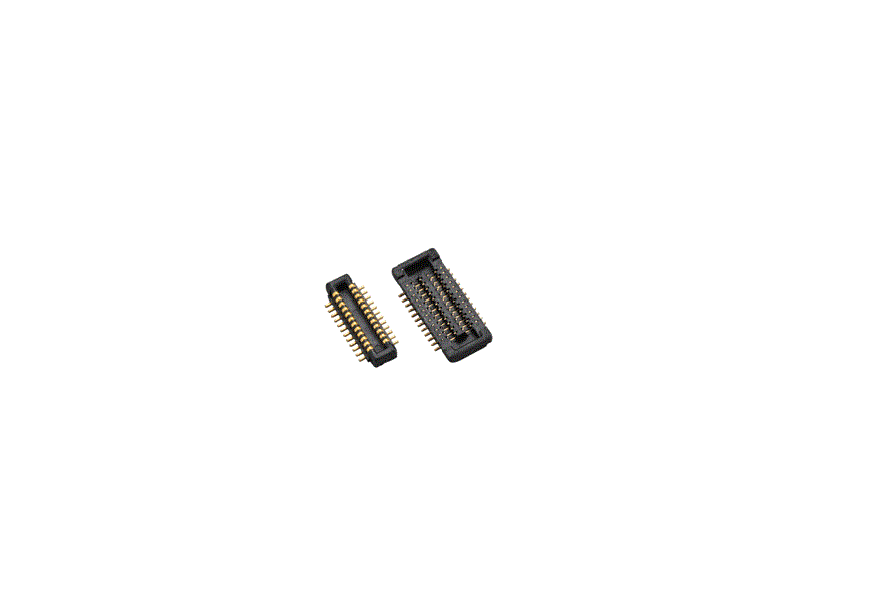

Description:


Height: 1.0, 0.8, 0.6 mm

Feature:

  • Voltage Rating : 50 V DC
  • Rated current : 0.3 AMPS
  • Temperature Range: -40℃ to +85℃ storage; -40℃ to +85℃ operating
  • Low Level Contact Resistance 50 mΩ Maximum
  • Insulation Resistance "500" MΩ Minimum
  • Durability 50 cycles

    • General Specification :
  • Voltage Rating : 50 V DC
  • Rated current : 0.3 AMPS
  • Temperature Range: -40℃ to +85℃ storage; -40℃ to +85℃ operating
  • Low Level Contact Resistance 50 mΩ Maximum
  • Insulation Resistance "500" MΩ Minimum
  • Durability 50 cycles

Applications:

  • Mobile phone
  • Tablet PC

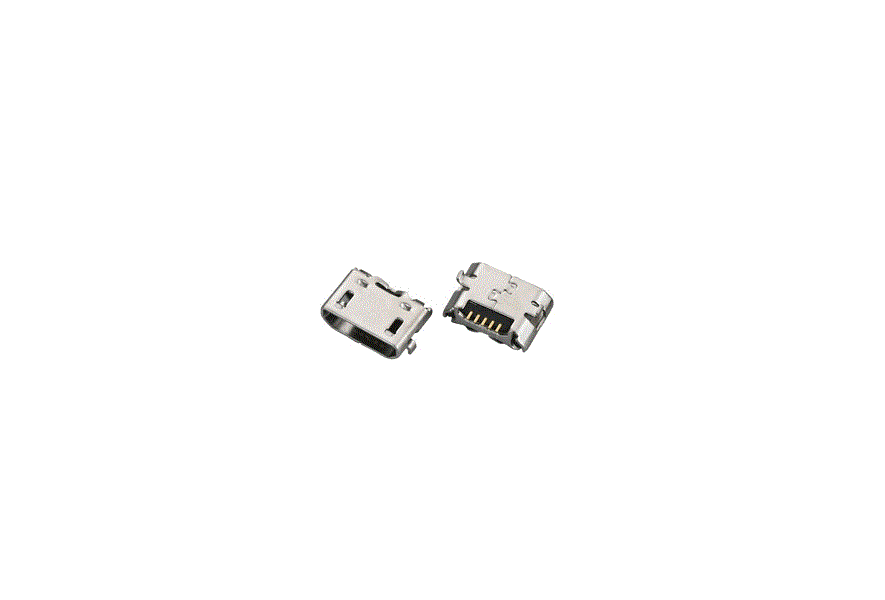

Description:


Type : AB & B
Standard & Reverse

Feature:

  • Stainless Steel: provides high durability & strength.
  • Lead-in feature: Better blind mating.
  • Latch Locker: Provides stronger locking force to prevent plug dropping off from the receptacles.
  • Notch Design: Prevents plastic housing being push out by plug during impact.
  • Rear Cover: Prevents relevant EMI issue.
  • Multiple Soldering area: Provides high retention force on PCB.
  • Green Material: Environmental protection.

    • General Specification :
  • Durability: 10,000 cycles
  • Mating Force: 35N maximum
  • Unmating Force: 8N minimum
  • Current Rating: Pin2, 3 & 4: 1 Amp (Minimum); Pin1 & 5: 1.8 Amp

Applications:

  • Mobile Phone
  • Smartphone
  • MP3 Player
  • Charger
  • Adaptor

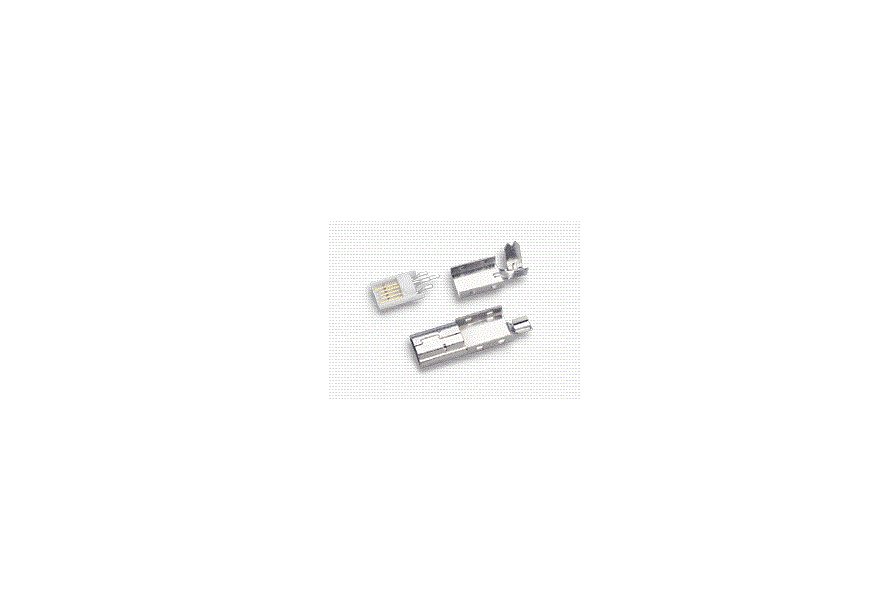

Description:


Solder Type

Feature:

  • 5Pin(one ID Pin), 0.8mm pitch, super mini connector.
  • Reduced mounting space.
  • 3 versions to meet future industry requirement.
  • Fully compliant with current USB 2.0 specifications.
  • Smaller and lighter than exiting USB connector for portable and handheld devices.

    • General Specification :
  • Insulation Resistance: 100MΩ
  • Dielectric Withstanding Resistance: 100V AC
  • Contact Current Rating: 1.0A
  • Unmating Force: Initial 7N minimum; After 3N minimum
  • Durability: 5000 cycles

Applications:

  • Cell phones
  • Digital still cameras
  • Digital video cameras
  • PDAs
  • MP3 Players
  • Other portable and hand-held devices

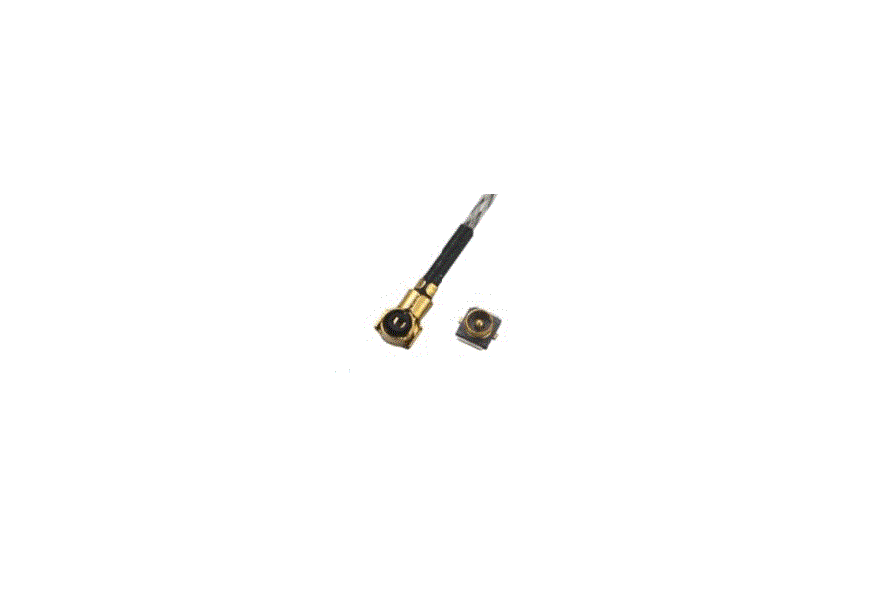

Description:


cable end (OD: 0.81, 0.64, 1.13)
Receptacle

Feature:

    General Specification :
  • Insertion loss: 0.15dB max.(DC~3GHz)/0.2dB max.(3GHz~6GHz)
  • V.S.W.R.: 1.2 max.(DC~3GHz)/1.3 max.(3GHz~6GHz)

Applications:

  • Mobile Phone
  • WLAN
  • Smartphone

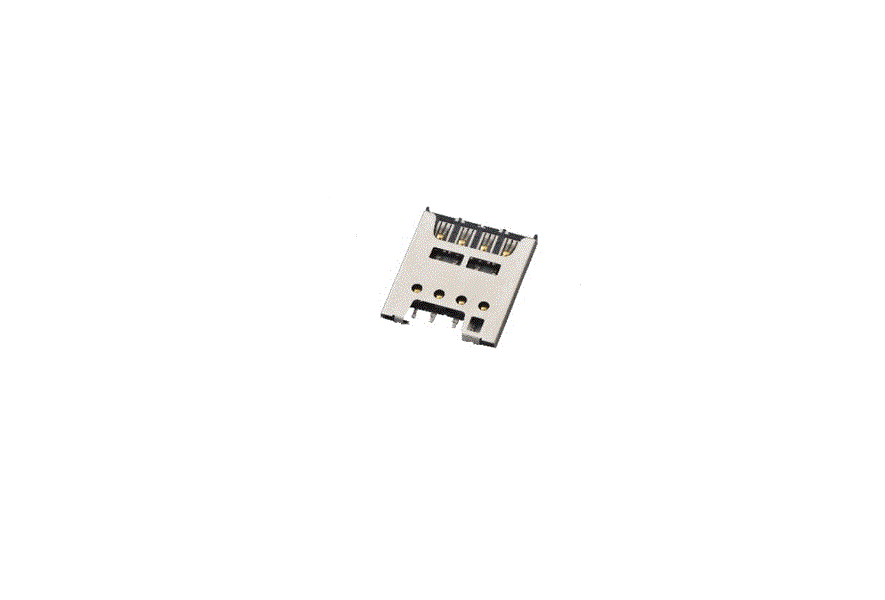

Description:


Pin : 6 & 8
Height: 1.3 mm

Feature:

  • SMT
  • 6/8 pin
  • Pitch: 2.54mm
  • With/without card holder

    • General Specification :
  • Durability: 5K~10K
  • Contact Resistance: 100mΩ
  • Insulation Resistance: 500MΩ
  • Dielectric Withstanding Voltage: 500V

Applications:

  • Mobile Phone
  • PDA
  • Smartphone
  • Wireless module

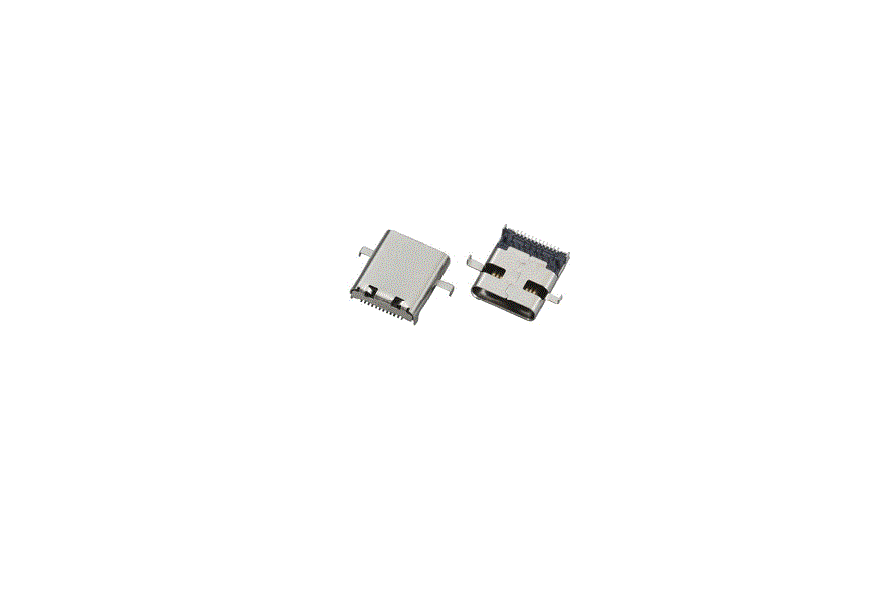

Description:


480Mbps, 5A

Feature:

  • Internal Latch design to eliminate external scratches on cables plug shell
  • Flippable plug for good customer experience
  • Bullet nose plug entry for ease of mating
  • Standard 3A current rating
  • PD 5A current rating option
  • Improved internal and external RFI performance
  • One connector with power charging, data transfer, DP video and audio capability
  • Top mount, mid mount and docking solutions
  • Over 10,000 cycles durability
  • Click Mating / Un-mating feel and sound

    • General Specification :
  • Voltage Rating: 50 Vac(rms)
  • Temperature Range:
    storage: -20℃ to +60℃
    operating: -40℃ to 80℃
    nominal: +20℃

    • Electrical Specification:
  • LLCR: 40mΩ (initial) Δ50 mΩ (after)
  • Dielectric Strength: 100 Volts
  • Insulation Resistance: 100 MΩ Min.
  • High current: 5A current shuld be applied to Vbus pins

    • Mechanical Specification:
  • Durability: 10,000 cycles
  • Extraction Force:
    6~1,000 Cycles 8N~20N
    1,001 ~ 10,000 Cycles 6N~20N

Applications:

  • Storage (Personal Cloud, Network-Attached Storage)
  • Smartphone
  • Tablet
  • Notebook (Laptops)
  • Hybrid-Detachable (NB-Tablets)
  • Docking
  • Peripherals (Monitor/Display, Projector…)
  • Automotive Infotainment
  • Home Entertainment

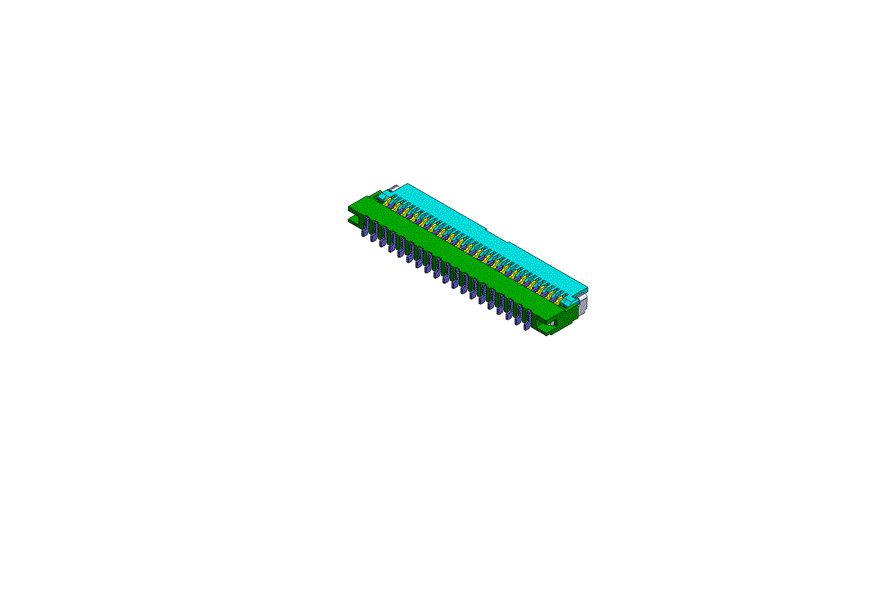

Description:


Pitch: 0.3, Height: 1.0 mm

Notes:

  • Long WIPE designed to prevent PCB by external exit leading to disconnection.
  • Add the back cover anti-eject mechanism, better locked cover.
  • SMT reserve air tank designed to strengthen the soldering characteristics.
  • The main housing evenly toothed core design prevents condensation inside the plastic core issues.
  • Reverse HOLDDOWN balance and floating high SMT design, fully guaranteed soldering characteristics.
  • Vacuum Pick Up Area is large, easy Nozzle draw.

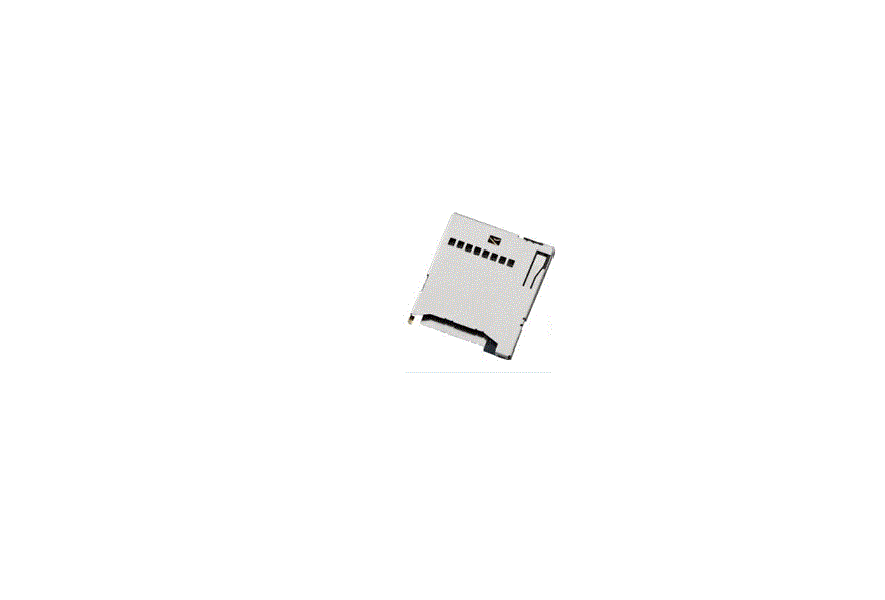

Description:


Pin : 8
Height: 1.25mm & 1.45mm

Feature:

  • Size ： 15.3*13.4*1.25

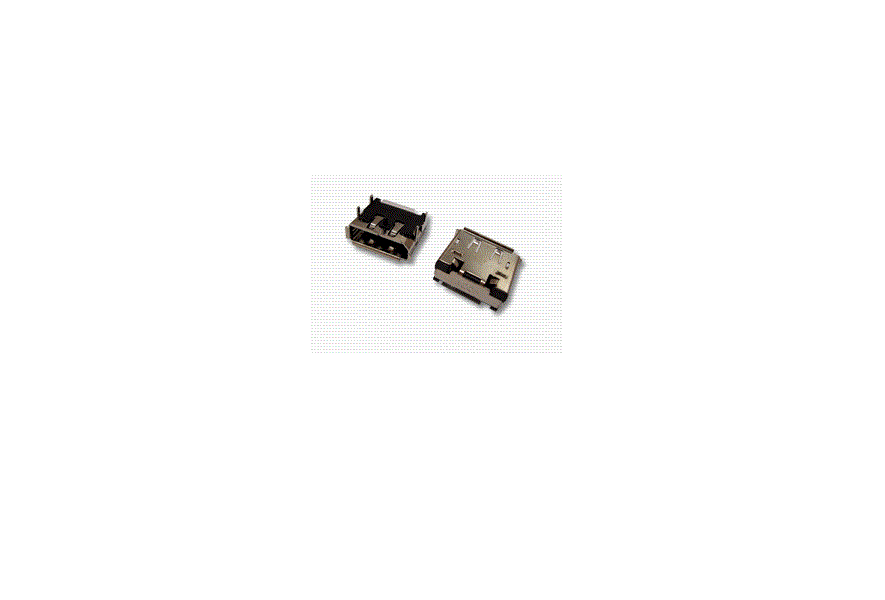

Description:


Display port Series

Feature:

  • DisplayPort delivers more high performance features than any other digital interface.
  • Designed to replace older standards like DVI and VGA.
  • DisplayPort opens up new possibilities in computing, digital displays and consumer electronics.

    • General Specification :
  • Durability: 10,000 cycles
  • Insertion Force: 4.5kg maximum
  • Withdrawal Force: 4.0kg maximum, 1.0kg minimum
  • Contact Current Rating: 0.5A minimum
  • Contact Resistance: 30mΩ maximum
  • Insulation Resistance: 500MΩ minimum

Applications:

  • Storage
  • D/T PC
  • Peripherals (Monitor/Display, Projector…)
  • Home Entertainment

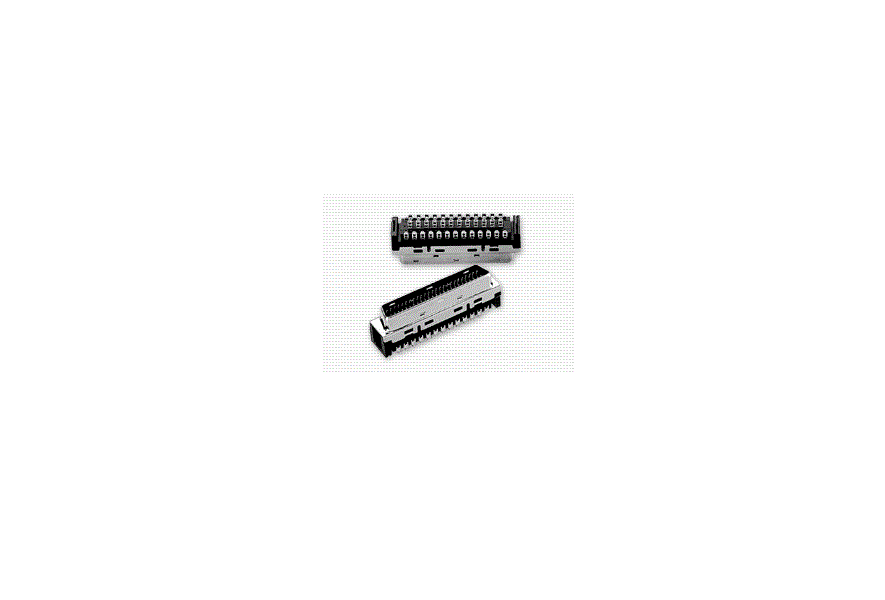

Description:


Half Pitch Series

Feature:

  • Industry Standard I/O Receptacles & Plugs.
  • High Reliability and High Density packaging.
  • Excellent EMI protecting

    • General Specification :
  • Contact Resistance: 25MΩ Max.
  • Contact Current Rating: 1.0 Amp. Max.
  • Insulation Resistance: 500MΩ Min.
  • Dielectric Withstanding Voltage: 500V AC (r.m.s.)
  • Durability: 500 Cycles

Applications:

  • SCSI Card
  • DFP/LVDS Display VGA Card
  • IEEE 1284 Interface
  • M/B Series
  • Cable Ass'y


Part List:



ACON P/N. Type Model No. of Pos. Length
(mm)		 Width
(mm)		 Height
(mm)
HAP16-50D5201 IDC Standard 50 14.90 40.11 7.44
HAP16-68D5203 IDC Standard 68 14.90 51.54 7.44
HAR20-50K4212 R/A Standard 50 17.10 52.40 10.20
HAR24-68A8446 R/A Standard 68 16.60 63.80 10.30
HAW15-50K3200 Solder Standard 50 13.20 40.05 9.10
HAW14-68K3200 Solder Standard 68 13.20 51.48 9.10
HBP13-50K3200 IDC Standard 50 12.70 40.10 9.00
HBP13-68K3200 IDC Standard 68 12.70 51.48 9.00
HBR20-50K3211 R/A Standard 50 16.75 52.43 9.35
HBR20-68K3217 R/A Standard 68 16.75 63.86 9.35
HBW13-50K3200 Solder Standard 50 15.70 40.10 9.10
HBW17-68KB200 Solder Standard 68 16.30 51.48 9.10

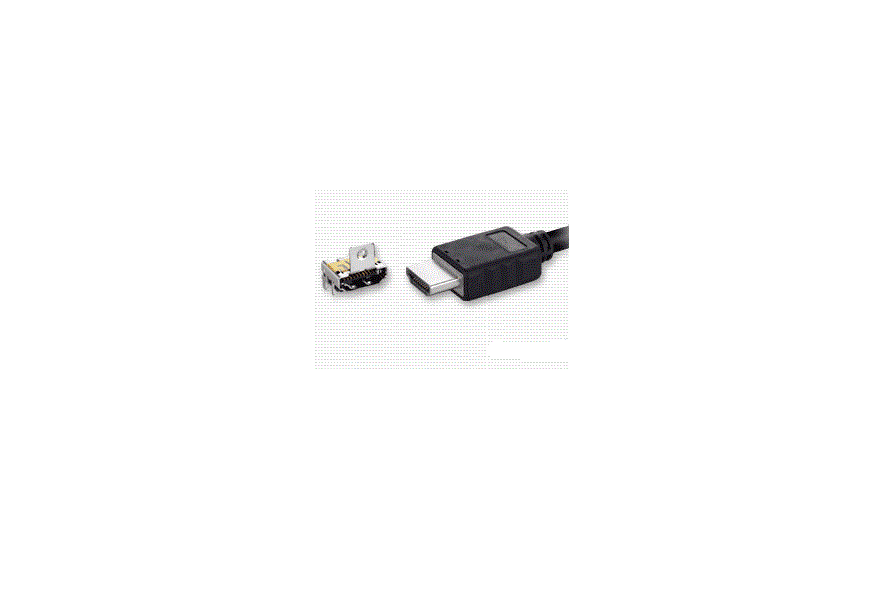

Description:


High Definition Multimedia Interface

Feature:

  • Simple User Friendly Connector
  • Replaces existing audio and digital cabling in one assembly
  • Easy-to-use friction lock design provides secure electrical contact and smooth cable insertion & extraction
  • Full shielding for ESD protection and lead-free process capable
  • 19 positions and 5 Gigabits/second of bandwidth to support video and multi-channel audio in a single cable
  • DVI Backward Compatible
  • Middle mount for NB market

    • General Specification :
  • Connect resistance: Conect ~Change from initial value : 30mΩmaximum Shall~Change from initial value :
    50mΩmaximum
  • Durability: 10,000 cycles
  • Mating Force: 44.1 Nmaximum
  • Unmating Force: 9.8 N minimum, 39.2N maximum

Applications:

  • Digital or High-Definition TV's
  • Set-top Boxes
  • BD players
  • A/V receivers
  • Notebook


Part List:



Series Type Style Model No. of Pos.  CH
(mm) 		 Length
(mm)		 Width
(mm)		 Height
(mm)
HMR4W R/A Standard Top Mount 19 3.30 12.00 15.00 14.25
HMRA3 R/A Reverse Middle Mount 19 -1.00 13.85 15.00 6.95
HMRBL R/A Reverse Middle Mount 19 -   1.925 13.85 15.00 2.00
HMRBB R/A Reverse Middle Mount 19 -2.75 13.85 15.08 7.70
HMRBE R/A Reverse Middle Mount 19 0.22 12.50 15.00 5.55
HMRBK R/A Reverse Middle Mount 19 -1.52 13.85 22.00 7.50
HMRBM R/A Reverse Middle Mount 19 -1.925 14.65 15.00 6.70
HMRBS R/A Reverse Middle Mount 19 -1.00 16.00 15.00 6.95
HMRF6 R/A Reverse Middle Mount 19 -1.32 13.85 15.00 6.20

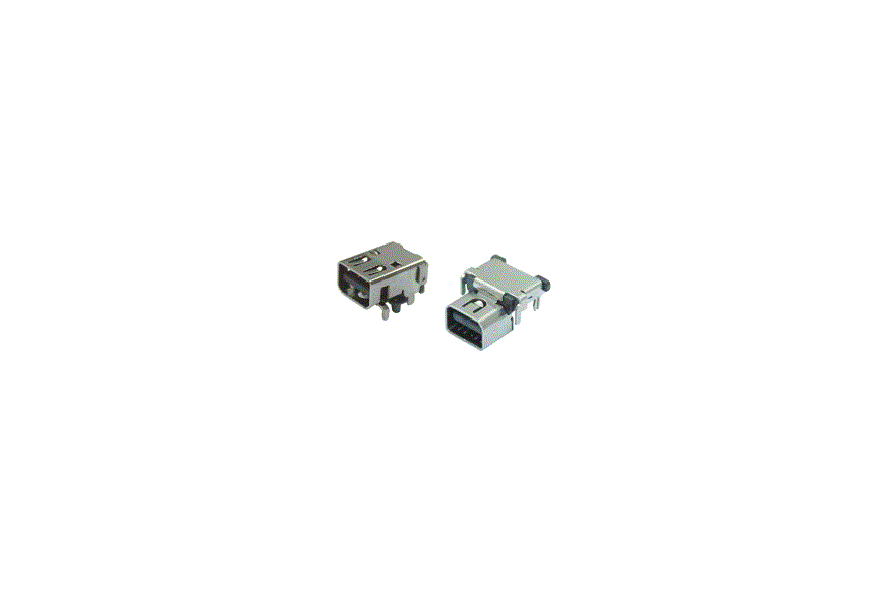

Description:


Mini Display Port Series

Feature:

  • DisplayPort delivers more high performance features than any other digital interface.
  • Designed to replace older standards like DVI and VGA.
  • DisplayPort opens up new possibilities in computing, digital displays and consumer electronics.

    • General Specification :
  • Durability: 10,000 cycles
  • Insertion Force: 4.5kg maximum
  • Withdrawal Force: 4.0kg maximum, 1.0kg minimum
  • Contact Current Rating: 0.5A minimum
  • Contact Resistance: 30mΩ maximum
  • Insulation Resistance: 100MΩ minimum

Applications:

  • Storage
  • D/T PC
  • Note Book
  • Peripherals (Monitor/Display, Projector…)
  • Home Entertainment


Part List:



Series Connection
Style		 Type Model No. of Pos.  CH
(mm) 		 Length
(mm)		 Width
(mm)		 Height
(mm)
MAR20 R/A Standard Top Mount 20 3.200 11.82 9.85 5.90
MAR2A R/A Standard Top Mount 20 3.700 11.82 9.85 6.40
MAR25 R/A Standard Middle Mount 20 2.250 11.82 9.20 5.20
MAR2E R/A Standard Middle Mount 20 0.250 14.80 11.40 6.95

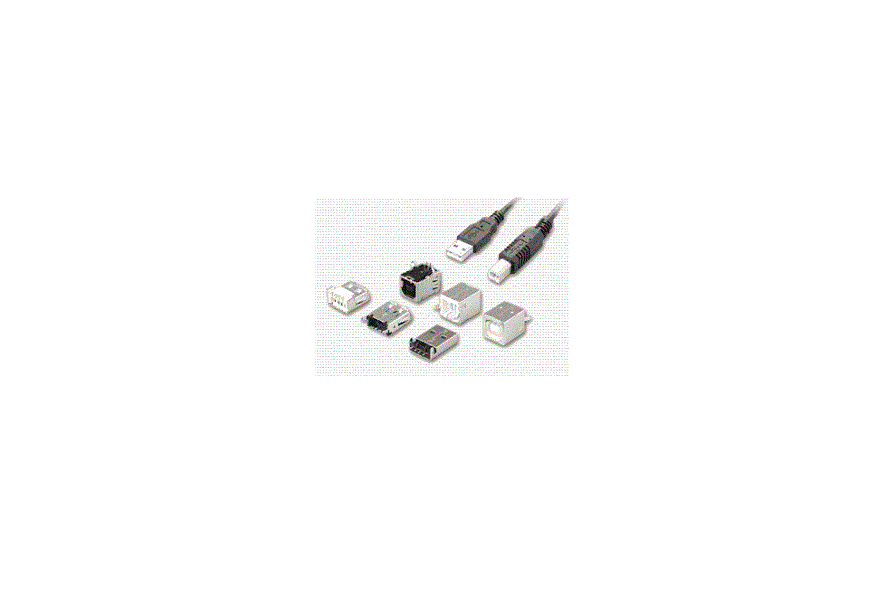

Description:


Universal Serial Bus

Feature:

  • Full line of Universal Series Bus plugs and receptacles for ease of design.
  • Series A and B plugs and receptacle.
  • SMT and Thru-hole terminals for Board Mount receptacles and plugs.
  • Single and Double stack for Series A receptacle.
  • Solder Series for A and B plugs.
  • Allow the connection of up to 127 devices.
  • Middle mount for NB market
  • Provides speeds of:
    1.5 Mbps (USB1.0)
    12 Mbps (USB1.1)
    480Mbps(USB2.0)

    • General Specification :
  • Connect resistance: 30mΩmaximum
  • Insulation resistance: 1000MΩminimum
  • Durability: 1500 cycles
  • Mating force: 35 Newtons maximum
  • Unmating force: 10 newtons minimum

Applications:

  • Printers
  • USB flash drive
  • Set-top Boxes
  • Notebook
  • Other human interface devices


Part List:



Series
Type
Style
Model
No. of Pos.
 CH
(mm)
Length
(mm)
Width
(mm)
Height
(mm)
UAR27
R/A
Standard
Top Mount
4
4.130
14.00
13.10
6.99
UAR64
R/A
Standard
Top Mount
8
 4.13, 12.63
16.96
13.10
15.49
UAR10
R/A
　
Top Mount
4
0.750
18.65
12.00
3.00
UAR70
R/A
Standard
Top Mount
4
0.750
18.65
12.00
3.00
UAR80
R/A
　
Top Mount
4
 N/A
19.30
5.72
14.65
UAS23
R/A
Standard
Top Mount
4
 N/A
15.00
13.10
5.72
UAW38
Solder
　
　
4
 N/A
36.50
12.00
4.50
UBR24
R/A
　
Top Mount
4
5.690
16.00
12.04
11.00
UBS23
R/A
　
Top Mount
4
 N/A
10.82
12.00
16.50
UBW32
Solder
　
　
4
 N/A
36.4
8
7.26
UAR2M
R/A
Reverse
Top Mount
4
4.010
10.00
13.10
6.87
UAR78
SMT
　
Middle Mount
4
 N/A
18.65
12.00
4.50
UARC4
R/A
Reverse
Middle Mount
4
-0.100
13.90
13.10
5.72
UARCQ
R/A
Standard
Top Mount
4
4.010
10.00
13.10
6.87
UARCV
R/A
Reverse
Middle Mount
4
-0.840
16.60
13.10
5.72
UARCF
R/A
Reverse
Middle Mount
4
-2.040
17.00
13.10
6.89

Description:

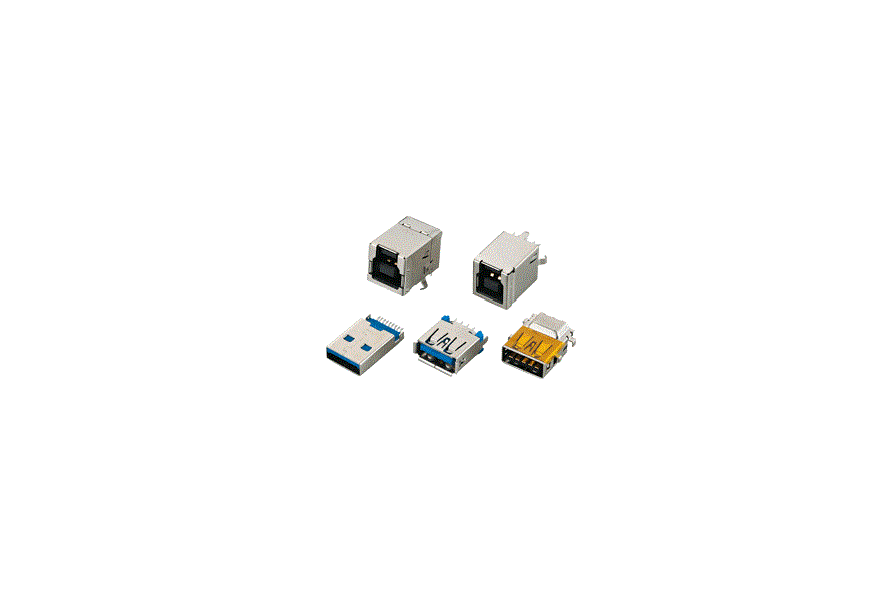

USB 3.0 Series

Feature:

  • 9Pin, Series A and B Plugs and Receptacles
  • Faster Data Transfer, Supporting 4.8Gbps Data Rate
  • Low Power Efficiency
  • Fully Compliant with Current USB 2.0 specifications
  • Additional Pins for Two More Differential Pairs for the Super Speed Signals

    • General Specification :
  • Insulation Resistance: 100MΩ
  • Dielectric Withstanding Resistance: 100V AC
  • Mating Force: 35N Max.
  • Un-mating Force: Initial 10N Min.; After 8N Min.
  • Durability: 5000 cycles

Applications:

  • Desk Top
  • Notebook
  • Scanner
  • Printer
  • Set-Top-Box
  • DVD player
  • Digital Camera
  • Flash Memory Card
  • Other Human Interface Devices


Part List:



Series Type Model No. of Pos.  CH
(mm) 		 Length
(mm)		 Width
(mm)		 Height
(mm)
TAW30 SOLDER Standard 9 4.000 42.00 16.00 8.00
TBW30 SOLDER Standard 9  N/A  27.10 8.00 10.44
TAR70 R/A Standard 9 0.850 18.65 12.00 4.50
TAR2M R/A Standard 9 1.000 13.90 13.10 5.72
TBR20 R/A Standard 9 5.690 18.45 12.00 16.70
TARA4 R/A Reverse 9 -    1.310 16.60 13.10 6.90
TAS21 VERTICAL  N/A  9  N/A  16.10 13.10 5.72

注：同一系列不同规格参数有所不同，以实际为准，请  联系我们  以获得解决方案支持。


相关产品


下一篇 : 最新资讯6
上一篇 : GGC连接器
购物指南
新手导购
发票须知
网站免责声明
支付方式
在线支付
银行转账
支付安全
配送方式
上门自提
国内交货
香港交货
运费说明
物流查询
售后服务
售后说明
申请售后
在线投诉
增值服务
样品申请
库存代销
解决方案
定制服务
品牌代理
特价供应
新品推介
呆料合作
品牌介绍
TE/TYCO连接器
TE/TYCO传感器
TE/TYCO继电器
MOLEX连接器
MOLEX自动化
Amphenol连接器
TE ERNI选购指南
TE QSFP选型指南
Dynamic选型指南
TE连接方案简介
关于我们
工高连城
工高线城
工高电子
招聘信息
代理证书
联系我们
微信扫一扫 | 一键下单
© 2016-2025 东莞市工高电子科技有限公司 版权所有，ALL RIGHTS RESERVED!
ICP备案证书号:粤ICP备09123563号
